Developers Guide
This page shows how to effectively get up and running with the pydev code.Summary
Getting the codeConfiguring the environment after getting the code
Where to start?
Creating a distribution locally
Contributing back
Getting the code
The first thing you probably want to do in order to code in pydev is getting its code. As pydev is an Eclipse plugin, the whole process will be explained based on the Eclipse infrastructure (this was written for the sdk version 3.4.1 with Subversive 0.7.6).Pre-requisites: Eclipse SDK 3.4.1, Subversive 0.7.6 and Java 5.0 (note that other versions of those should work too but details may differ a bit)
Before getting the code, there's an important step you need to make: Change your java 'compiler compliance-level' to 5.0. To do this, go to window > preferences > Java > compiler and change that setting from 1.4 to 5.0.
Getting the code

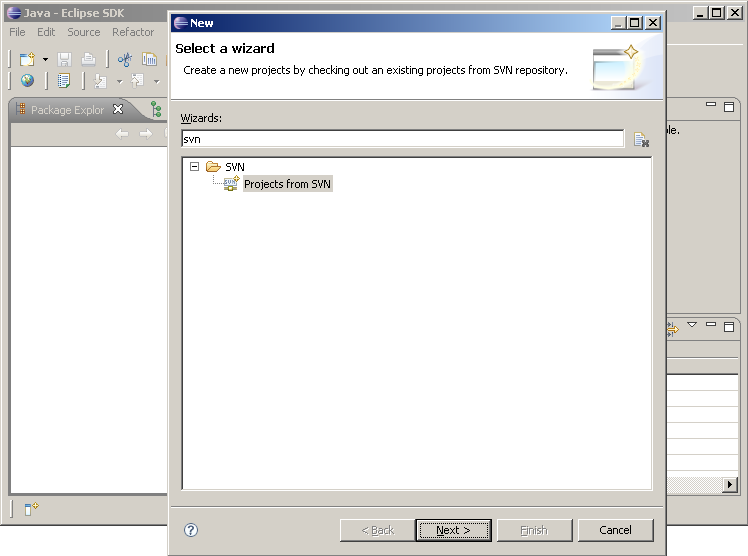

Go to the menu: File > New > Other and choose Projects from SVN
-

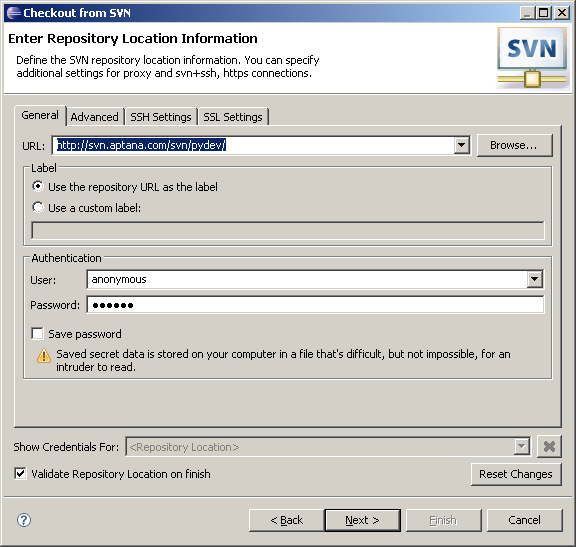

repo: http://svn.aptana.com/svn/pydev/
user: anonymous
password: aptana

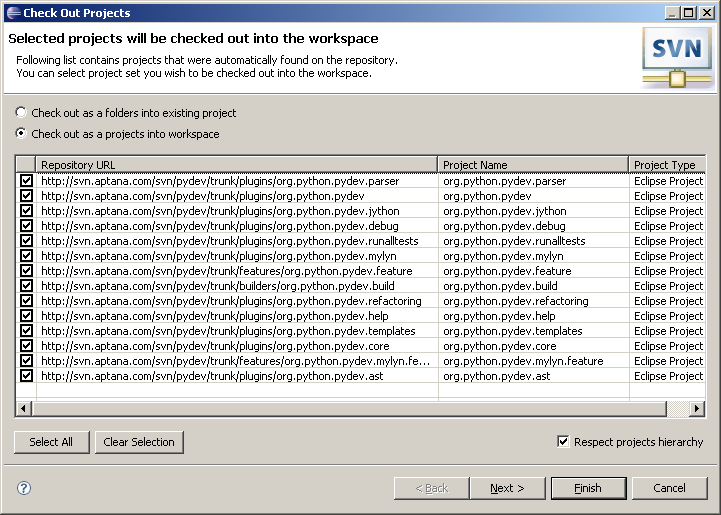

plugins, builders and features (so that the build script can be used later)
Configuring the environment after getting the code
After you do that, you'll probably note that the tests did not compile successfully. This is because there are some settings that will depend on your installation, and this settings are stored in a class that holds that info (which you'll have to create). There is a 'template' for that file in the svn at: org.python.pydev.core/tests/org.python.pydev.core/TestDependent.OS.template. You should create a copy of that file in that same dir named TestDependent.java and set the needed things according to your installation. If there is still something that does not compile, it may mean that:
- There is something missing in that TestDependent.java file because it is not synched with all the dependencies (if so, just add the needed variable to it)
- The head does not compile in the svn -- if you believe that is the case, send an e-mail to the pydev-code list at sourceforge to know what's happening.
Where to start?
Ok, this may be the most difficult thing... especially because answers may change a lot depending on what you want to do, so, below are outlined 2 different approaches:- Extending Pydev with Jython: recommended if you want to add some editor-related action or something that does not need implementing some Eclipse extension-point.
- Extending Pydev in Java: if you want something that won't map to an action, this might be the better way to go.
If you want to take the Jython approach, check out this article on how to do jython scripting in pydev
And that's it. If you have further doubts about how to code in pydev, direct your questions to the pydev-code list at sourceforge.
Creating a distribution locally
Provided that the steps were followed, Pydev should have the following structure:
/builders
/org.python.pydev.build
/features
/org.python.pydev.feature
/plugins
/org.python.pydev
... (other plugins)
Now, on to the build: start a shell and make sure ant is in your PATH and the JAVA_HOME is properly set.
In windows (update paths accordingly):
set PATH=%PATH%;W:\eclipse_341_clean\plugins\org.apache.ant_1.7.0.v200803061910\bin
set JAVA_HOME=D:\bin\jdk_1_5_09
For the other instructions, we'll supose that pydev was downloaded to c:/pydev and the structure we have is:
c:/pydev/builders
c:/pydev/features
c:/pydev/plugins
Go to the folder:
c:/pydev/builders/org.python.pydev.build
And type the following command (customizing the variables as explained below)
ant -DbuildDirectory=c:/pydev -Dbaseos=win32 -Dbasews=win32 -Dbasearch=x86 -Ddeploy.dir=c:/pydev/pydev_deploy -DcleanAfter=false -Dvanilla.eclipse=W:/eclipse_341_clean
-DbuildDirectory=c:/pydev
The folder that has /builders, /features and /plugins
-Dbaseos=win32
The platform (e.g.: linux, macosx, solaris, etc)
-Dbasews=win32
The windows system (e.g.: gtk, motif, carbon)
-Dbasearch=x86
The architechure (e.g.: ppc, sparc)
-Ddeploy.dir=c:/pydev/pydev_deploy
Directory where the update site and zips will be added.
-DcleanAfter=false
Whether it should clean things up after doing the build (reverts the sources to the svn version and deletes eclipse)
-Dvanilla.eclipse=W:/eclipse_341_clean
A location of a clean eclipse folder to be copied to do the build
And that's it, if everything went OK, you should have created an update site at the deploy dir specified (and the zip distribution should be there too).
Contributing back

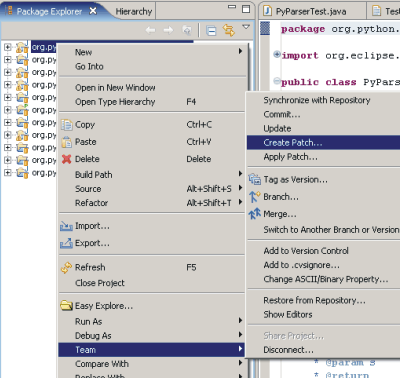

If you do some change at pydev that you want to contribute back to the main trunk, you should create a patch and attach it to a bug in the sourceforge tracker with the title: [PATCH] description of the patchCreating a patch: To create a patch, you should go to the package explorer, right-click the project you made changes to (if you changed more than one project, send a file with the changes to each project) and choose team > create patch. You should then follow the steps provided by the wizard. The most important thing is that you choose the Unified diff output.
NOTE 1: Diffs do not work well for binary files, so, if you made some change to some image, please attach the changed image itself, pointing the complete location to the image when attaching it to the bug.
NOTE 2: If you did some whole new script that uses the 'jython scripting in pydev' infrastructure, you do not need to create a patch. Just attach the script itself to the bug.
